Specification Specifications

12 inch

18 inch

24 inch

Max working width Maximum gonorrhea width

340mm

480mm

630mm

Max working thickness Maximum gonorrhea thickness

5mm

5mm

5mm

Max working speed speed

10m/min

10m/min

10m/min

Dry way Drying method

UV lamp

UV lamp

UV lamp

Power supply Power Supply

AC220V/50HZ

AC220V/50HZ

AC220V/50HZ

Max rate of power maximum power

2.5KW

2.5KW

4.5KW

Machine dimension Dimensions

750x935x520mm

880x935x500mm

1015x935x500mm

N/G Net weight/Gross weight

93KG/110KG

116KG/125KG

138KG/148KG

Packing size Package size

840x780x770mm

950x770x770mm

1120x800x840mm

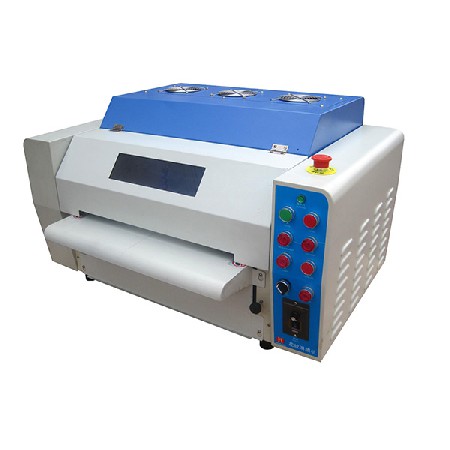

Desktop textured uv coating machine (Model: FLM-A)

Laminating for photos, pictures, papers, etc.

Automatic replenishment glue, no-clean.

Easy to operate, low cost.

Fast speed, shorten the drying time.

Occupy small space and easy transportation.

Photos can be waterproof, wear-resistant.

Scratch-resistant after laminating.

Used for surface treatment of photo, picture and paper

Automatic glue replenishment, no cleaning

Easy to operate, low cost

High speed, short drying time

Small area, convenient transportation

Waterproof and wear resistant after coating
