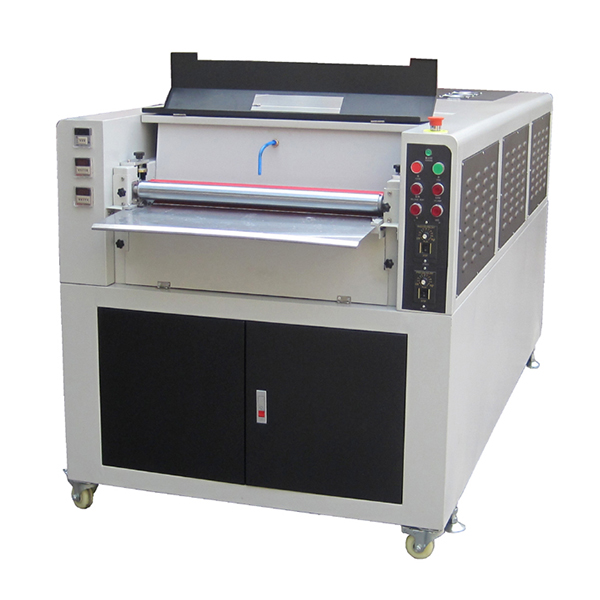

24 inch extended film machine

2020-12-09 472

Function:

Film coated with varnish can protect the film pattern, not easy to fall off, scratch resistance, wear resistance and chemical corrosion resistance.

Easy to use and low cost.

After gluing, the surface is bright, clear and strong adhesion.

It has been widely used in film circuit board.

Specification

24inch

Maxworkingwidth

630mm

Maxworkingthickness

3mm

Maxworkingspeed

15m/min

Dryway

IR Lamp

Powersupply

AC220V/50HZ

Maxrateofpower

6.5KW

Machinedimension

214*104*100cm

N/G

310KG/350KG

Packingsize

232*115*122cm
