Max working width

340mm

480mm

630mm

Max working thickness

5mm

5mm

5mm

Max working speed

10m/min

10m/min

10m/min

Dry way

UV lamp

UV lamp

UV lamp

Power supply

AC220V/50HZ

AC220V/50HZ

AC220V/50HZ

Max rate of power

2.5KW

2.5KW

4.5KW

Machine dimension

750x935x520mm

880x935x500mm

1015x935x500mm

N / G net / gross weight

93KG/110KG

116KG/125KG

138KG/148KG

Packing size

840x780x770mm

950x770x770mm

1120x800x840mm

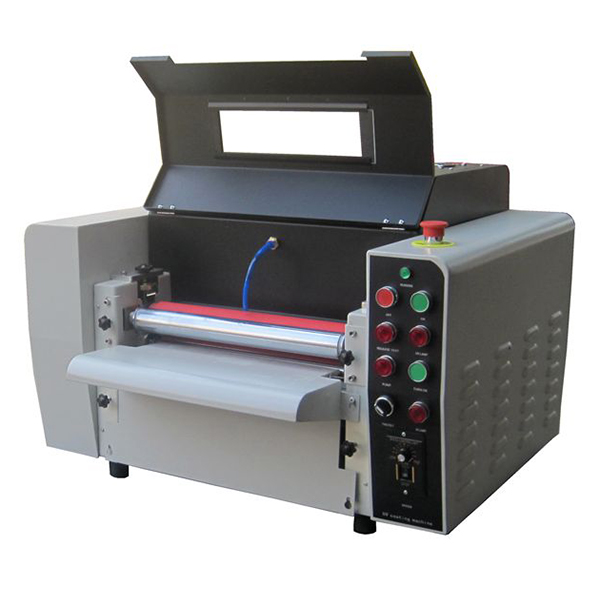

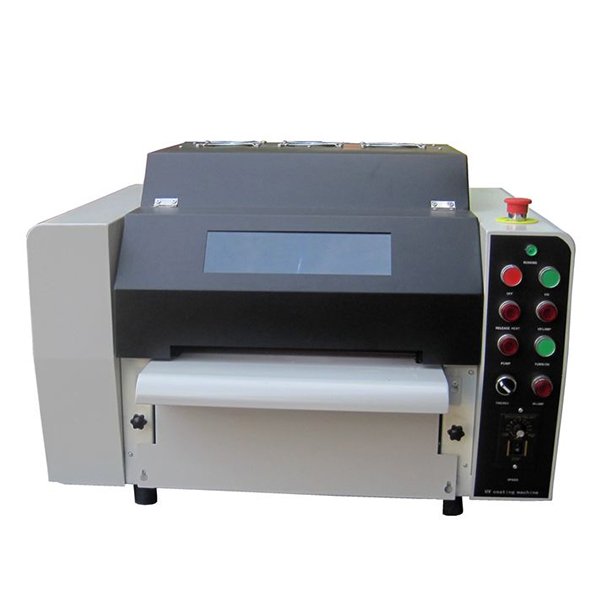

Desktop UV coating machine lm-a

Used for surface treatment of photo, picture and paper

Automatic glue replenishment, no cleaning

Easy to operate, low cost

High speed, short drying time

Small area, convenient transportation

Waterproof and wear resistant after coating
