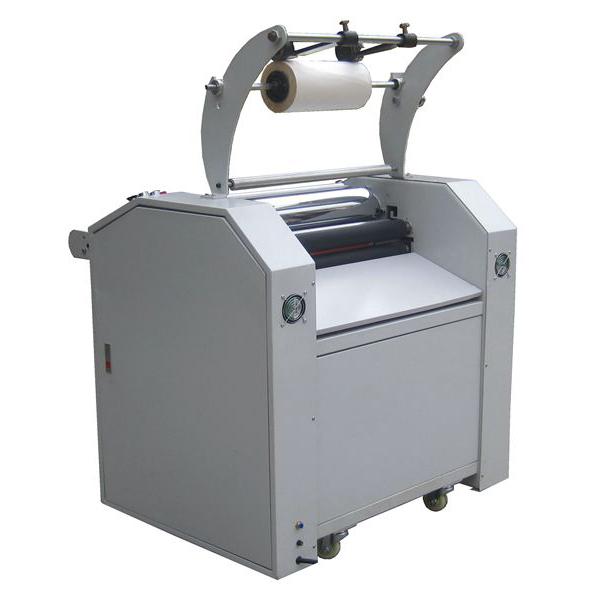

带刀覆膜机

2020-12-08 691

Specification 规格

24 inches

800

Max working width 最大工作宽度

630mm

780mm

Max working thickness 最大工作厚度

20mm

20mm

Temperature range 温度范围

50-130°C

50-130°C

Speed 速度

14m/min

14m/min

Max. Press 最大压力

1.0 MPa (10.2kgf/cm2)

1.0 MPa (10.2kgf/cm2)

Power supply 电源

AC220V/50HZ

AC220V/50HZ

Power consumption 功率

2.5KW

2.5KW

结构特性:

该机采用镀热油管内加热,发热均匀,以BOPP薄膜为材料经复膜压合后,产品具有透明度高,立体感强,无气味,粘合性能好,不出现雪花点,不起泡等优点。

可广泛应用于相片,包装盒、食品盒、书刊、图纸等印刷品表面复膜。

光机复膜,压纹复膜,一次成型,速度快,节省时间,成本。

可更换各种花纹棍,拆装方便,灵活多变。

设有张力装置。



Structural characteristics:

1. This machine is using internal heating of plating oil tube, uniform heating. It uses bopp film as materials. After the film laminating, the product is highly transparent, viscous, nontoxic and environment-friendly with a strong 3-D appeal and no smell, snowflake spots and bubbles.

2. It can be widely used in Photos, packing box, food box, books and periodicals.

3. It can laminate both plain and pattern. High efficiency, save time and money.

4. Interchangeable pattern roller.  Easy disassembly and creations.

Install with tension device.
