Model

LHY-A

Max working width 最大工作宽度

550mm

Creasing mark thickness 压痕宽度

0.8/1.2/1.5mm

Creasing way 压痕方式

Pneumatic 气动

Trimming length 整理长度

540mm

Trimmng thickness 整理高度

70mm

Trimming way 整理方式

Pneumatic 气动

Hot pressing height 热压高度

285mm

Hot pressing length 热压长度

460mm

Hot pressing width 热压宽度

550mm

Temperature 温度

55-110°C

Cold pressing height 冷压高度

300mm

Cold pressing length 冷压长度

600mm

Cold pressing width 冷压宽度

500mm

Corner cutting thickness 切角厚度

60mm

Angle size 角度

R3-R8

Corner cutting way 切角方式

Pneumatic 气动

Max cover area 封面最大尺寸

580mm x 370mm

Thickness of paper board 纸板厚度

0.5-6mm

Thickness of backbone 书脊厚度

0-6cm

Way of counterpoint 对位形式

Light

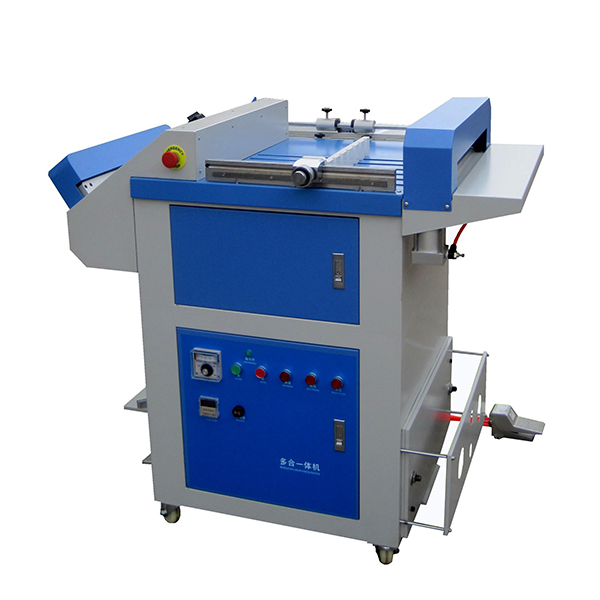

All in one album making machine (LHY-A)

Used for making album, menu and so on

Ten  functions in one machine: creasing, trimming, hot pressing, cold pressing, corner rounding and cover making. There is an mute oil free compressor installed in machine.

It operates easily and high efficiency

用于相册、菜谱压痕，9合一，功能有：压痕，整理，热压平，冷压平，圆角，封面定位，压槽，封面包边，封面切角，静单泵等产品制作

多功能组合，操作方便，简单！
